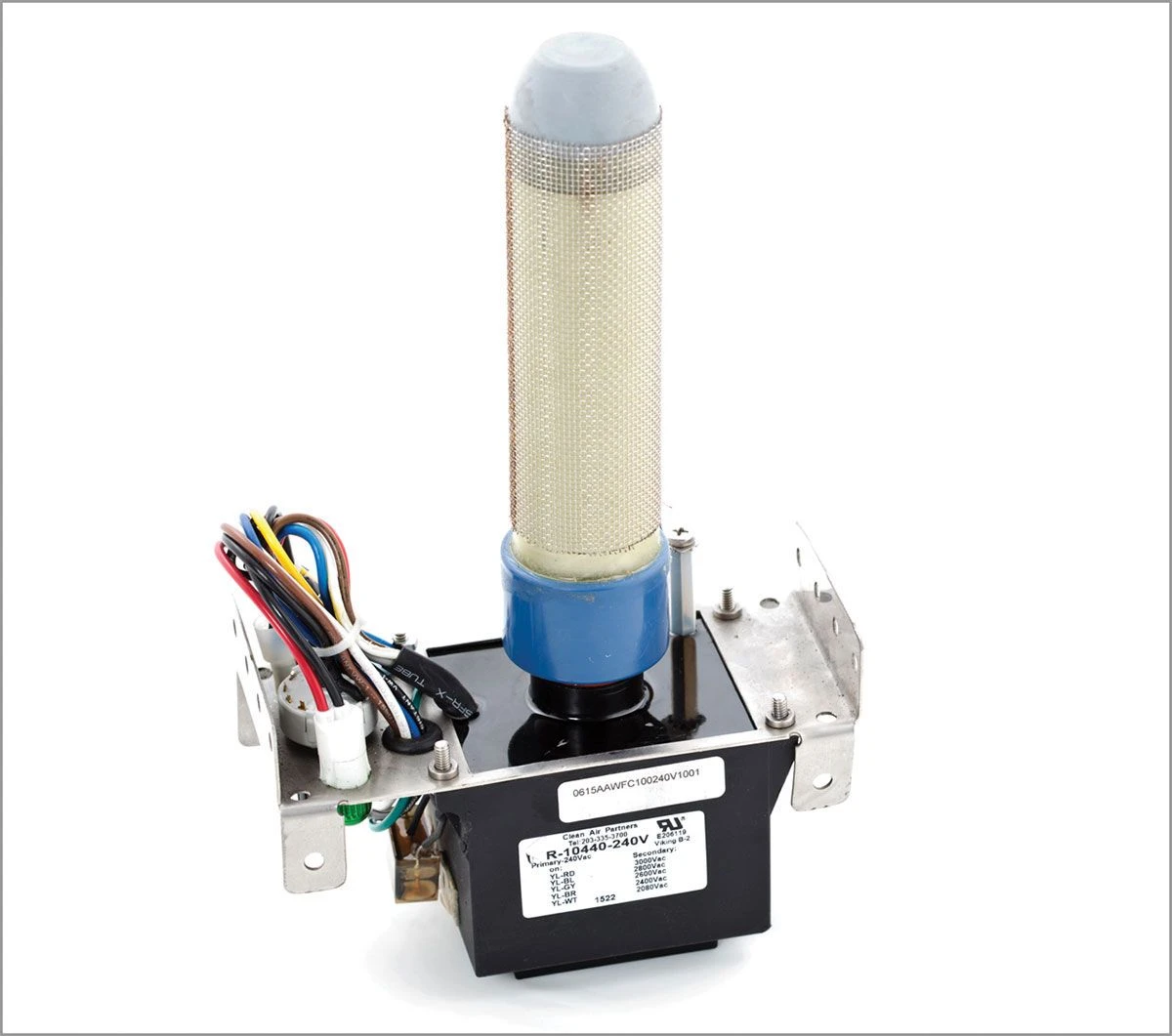

AtmosAir FC-100 Ionization System

AtmosAir FC100

The AtmosAir FC100 ionization system is intended to be mounted in the supply discharge in smaller air handling systems such as fan coils, heat pumps and other unitary type systems. The system can be integrated on an OEM basis, or a retrofit package is also available. Access to the unit’s control panel is provided. The unit will be calibrated at the factory per
AtmosAir recommendations or the contractor will calibrate the ionization setting to attain ion level readings of between 350 and 1,500 negative ions/cm3 in the space.

Electrical:

• Voltage 115 or 240 VAC
• Frequency 50/60 Hz
• Power Consumption 5 watts
• Current Draw 0.2 Amps
• Internal Fuse 1.25 Amp
• Field Electrical Connection Integrated into AHU
